Description

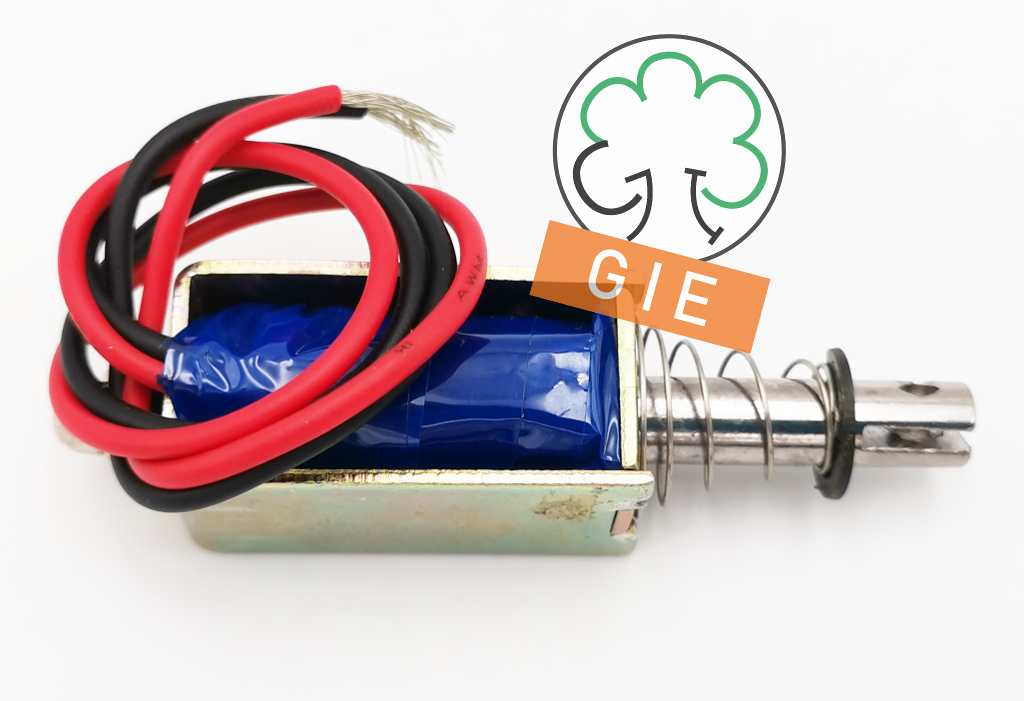

The solenoid lock denotes a latch for electrical locking and unlocking. It's basically an electronic lock, designed for a basic cabinet, safe or door. When 6VDC is applied, the slug pulls in so it doesn't stick out and the door can be opened.

Specification

• Operating voltage: 6VDC

• Current Consumption: 1.4A at 6V when activated

• Turn on time limit: <5s

• Weight: 30g

• Dimension: 60.5mm x 13mm x 15mm

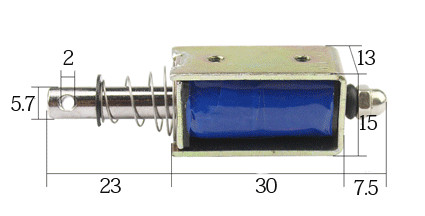

Dimension
