Module Features

• Module Type : DC-DC Step Down, Constant Current or Voltage

• Input Voltage : DC5V ~ 36V

• Output Voltage : DC1.25V ~ 32V

• Max. output Current : 5A, recommended at 4.5A

• High Efficiency : Up to 96%

• Dimension : 68.2mmx38.8mmx15mm

• Overheat and Overcurrent protection

• Comes with heat sink and stand-off

• 5 modes display : Display Input voltage

• : Display Output voltage

• : Display Output Current

• : Display Output Power

• : 4 type display alternately

Reference

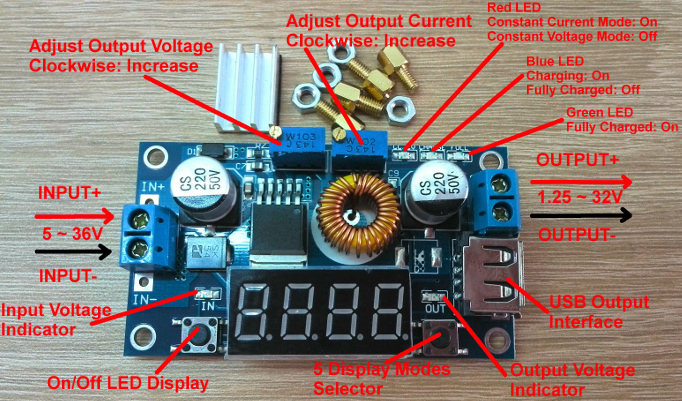

How to use as step down voltage with current limit

1. Press right button to select display output voltage; adjust left variable resistor to your expected voltage.
2. Press right button to select display output current; short output '+' with output '-' by using a jumper wires.
3. Adjust right variable resistor to your expected current.
4. Connect to your load.
